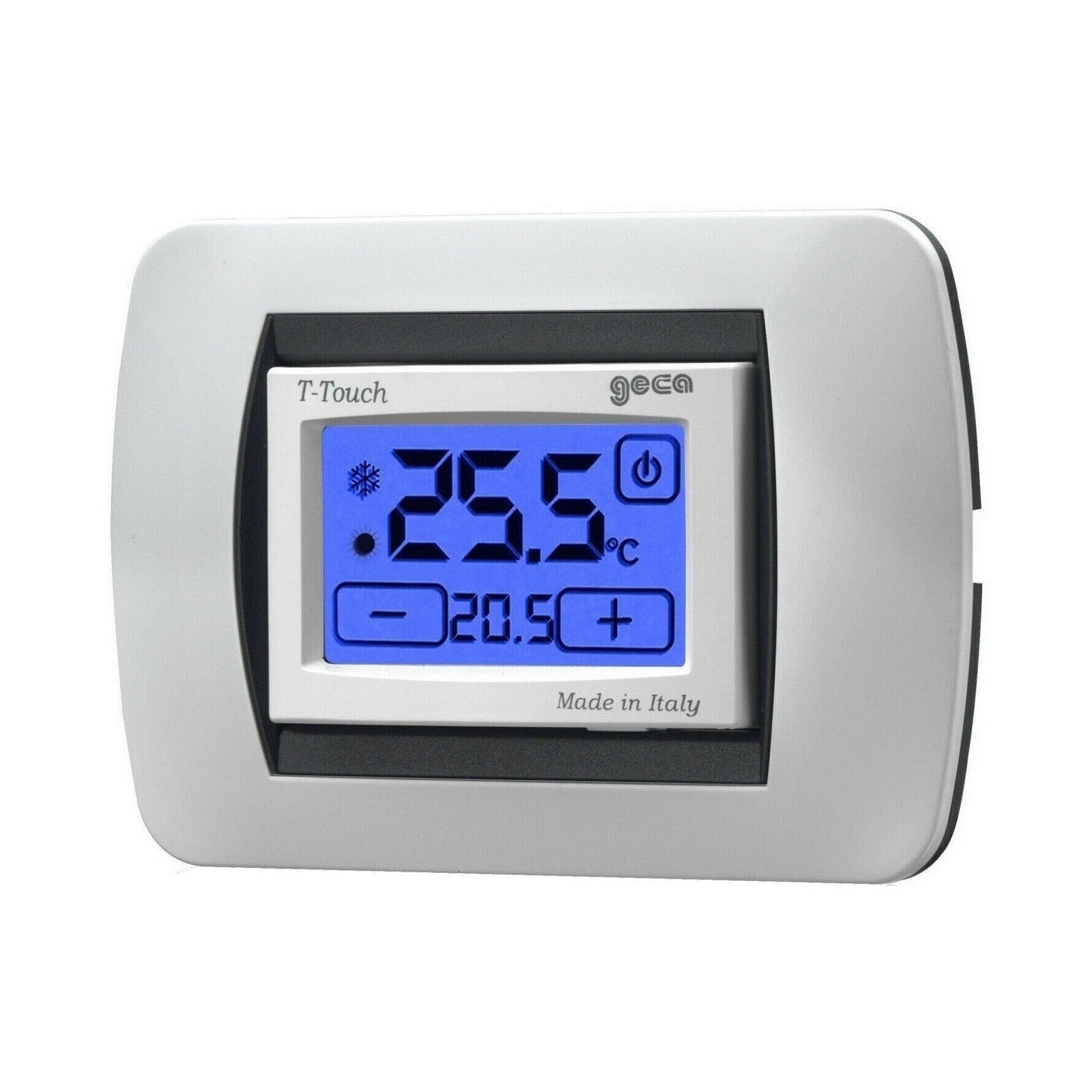

T-TOUCH Built-in touch screen thermostat

Touch screen digital thermostat with daily and night temperature memory and backlit display. Very easy to install in a 3-module box, it is interchangeable with the ARTE, DAY thermostat and the OPERA and GREEN chronothermostats simply by replacing the insert. Battery powered, it has a double summer and winter operating mode to control both air conditioning and heating systems. Compatible with the most popular civil series plates.

Standard Specifications

Power supply: 2 1.5V AA alkaline batteries

Autonomy: 18 months (stand-by)

Battery charge control: 2 intervention thresholds

Temperature control: PI algorithm

Temperature reading: Every minute

Setting range: Winter +2/+30° C Summer: +10/+35° C

Regulation step: Winter +/- 0.2° C Summer: +/-5° C

Thermal differential: Adjustable from +/- 0.2 to +/-2° C

Reading accuracy: +/- 0.2° C

Contact rating: 230Vac - 5A (resistive load)

Installation: Built-in - 3 modules

Product code: 35301652

ATTENTION: The image is indicative, the plate is not supplied
