Climate 5000i L air conditioners

Ideal solutions for cooling and heating large rooms in residential or commercial contexts

• Efficiency class A++ in cooling and A+ in heating


• Environmentally friendly, thanks to the use of ecological R32 refrigerant gas

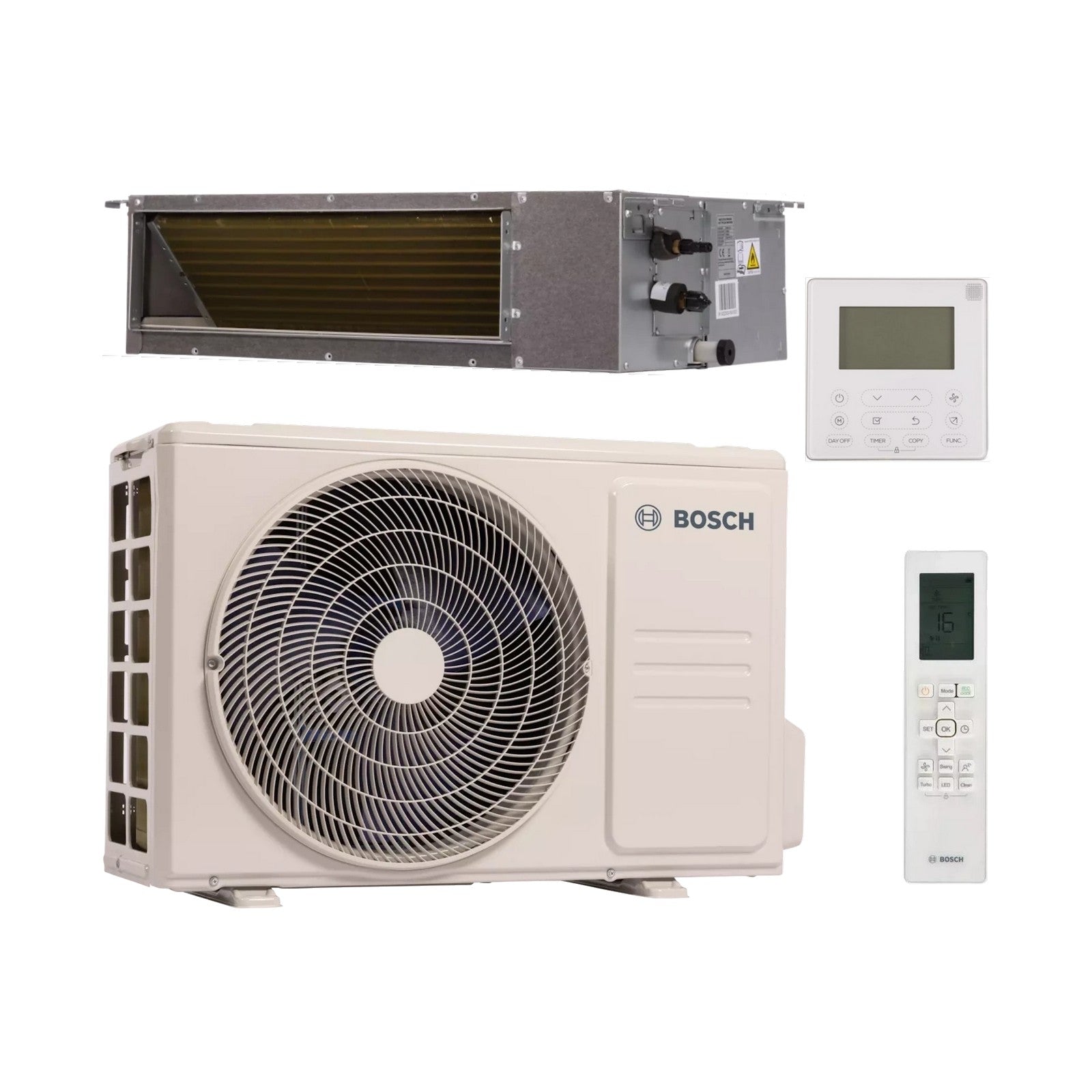

• Consisting of an outdoor unit and one or two indoor units


• Simple and intuitive management, even remotely via the HomeCom Easy app

Advantages

A solution for every need

The Climate 5000i L air conditioners, available in 8 capacity sizes (from 3.5 to 15.5 kW), are the ideal solution for air conditioning large environments, such as open spaces, large apartments, single-family homes and offices. The high number of possible combinations, offered by the wide range of internal and external units, allows you to meet every need. In fact, it is possible to combine an external unit with one or two internal units, choosing between cassette, ducted, floor/ceiling and console solutions.

Efficiency and respect for the environment

The air conditioners in the Climate 5000i L range are characterized by a wide operating range in cooling, with temperatures from -15 to +50°, and an efficiency class of A++ in cooling and A+ in heating. Furthermore, they are environmentally friendly because they use the ecological R32 refrigerant gas with reduced CO2 emissions.

Many functions and maximum comfort

Depending on the type of internal unit installed, it is possible to take advantage of different functions. The "Follow Me", "Sleep" and "Indirect ventilation" functions guarantee the desired level of comfort at any time, while the "Eco" and "Gear" functions ensure high energy savings.

Intuitive management even from a distance

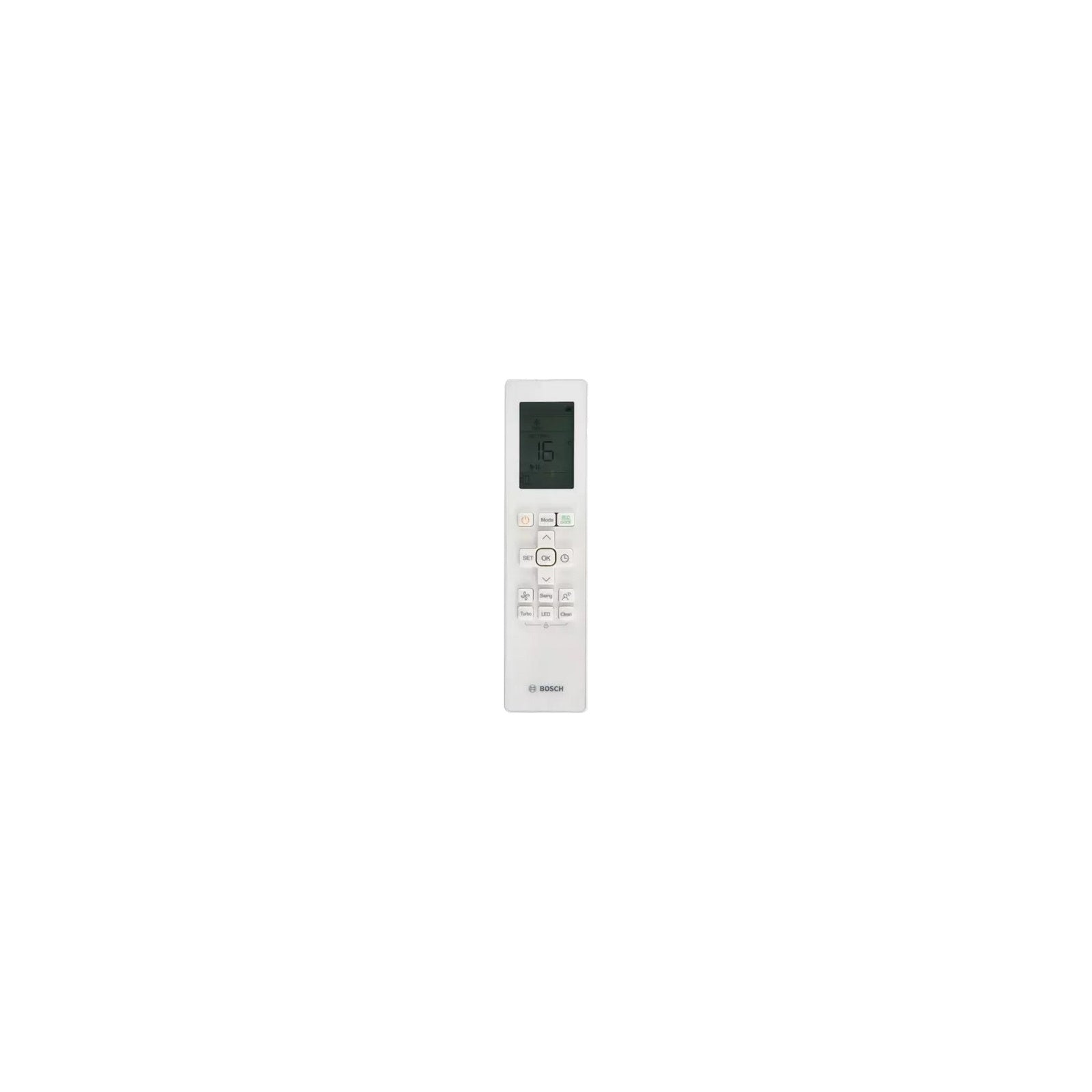

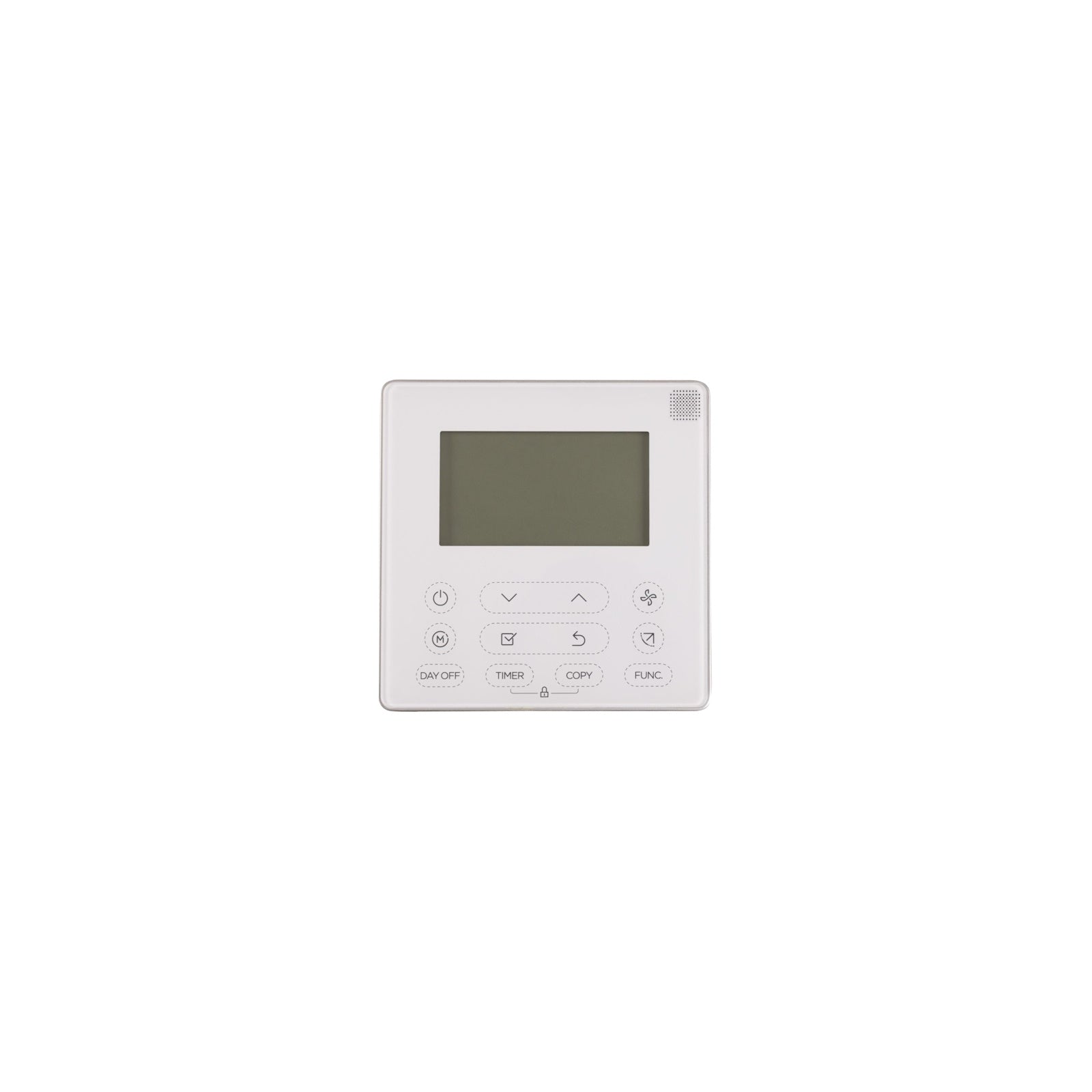

Each internal unit can be managed in a simple and practical way using the appropriate remote control supplied as standard or via a wired control installed on the wall. Furthermore, via the optional Wi-Fi interface, you can also manage the temperature from your smartphone by downloading the HomeCome Easy app.

Details and technical documents

Product code: CL5000IL-SET 70 DE

Sound power level, indoor, cooling: 62 dB

Sound power level, external, cooling: 68 dB

Sound power level, indoor, heating: 62dB

Sound power level, external, heating: 68 dB

SEER: 6.2

Energy efficiency class, cooling: A++

Theoretical cooling load: 7.1 kW

SCOP average climate: 5.4

Average climate heating energy efficiency class: A+

Theoretical average climate heating load: 4.3 kW

Nominal air flow (indoor): 1229 m³/h

Nominal air flow (external): 3500 m³/h

Product code: 7733701916

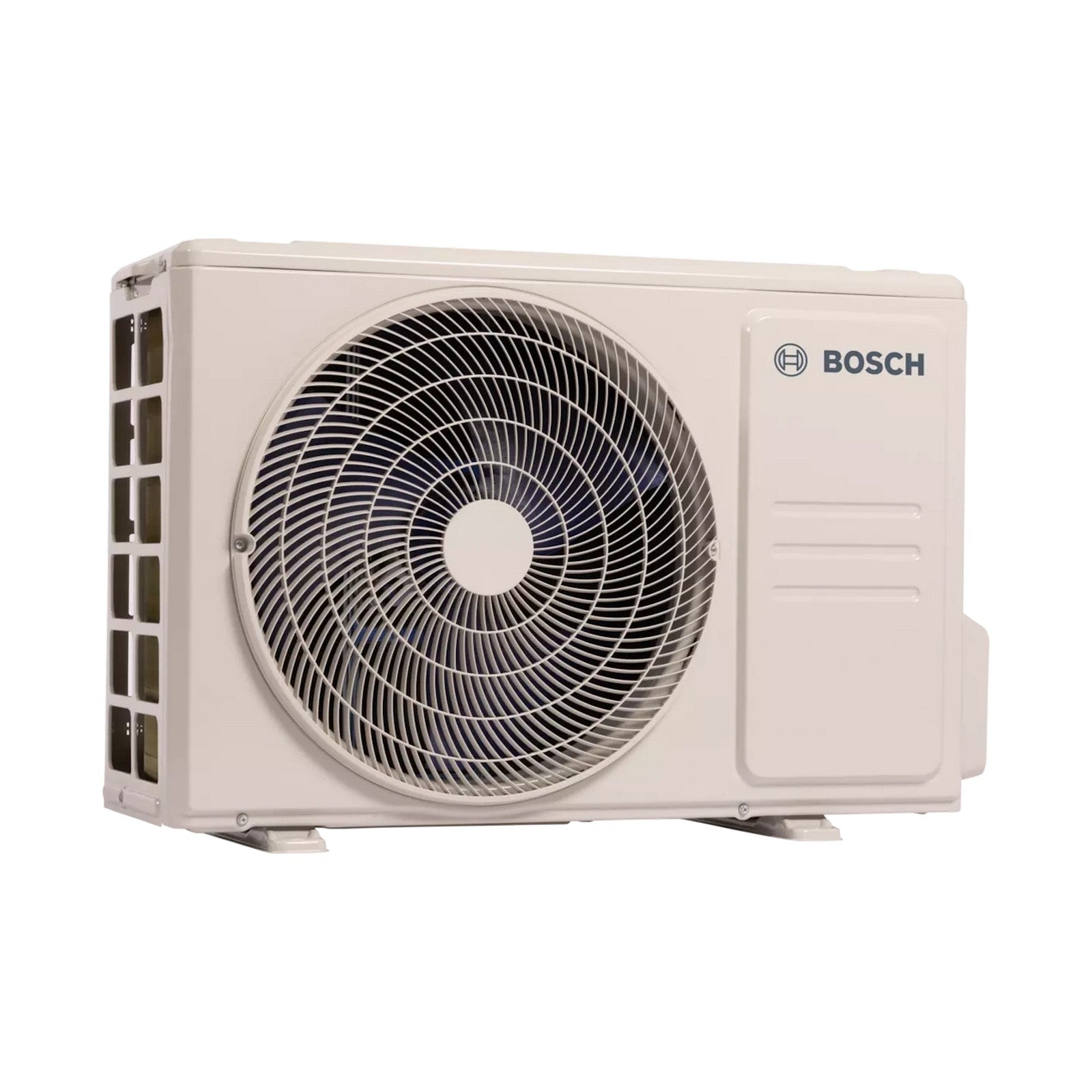

External unit

Product code: CL5000L 70 E

Width: 805 mm

Height: 554mm

Depth: 330 mm

Max. operating temperature, cooling: 50°C

Min. operating temperature, cooling: -15°C

Max. operating temperature, heating: 24°C

Min. operating temperature, heating: -15°C

Does it contain fluorinated greenhouse gases?: Contains fluorinated greenhouse gases

Coolant filling quantity: 1.15kg

Hermetically sealed equipment? Not hermetically sealed

Product code: 7733701871

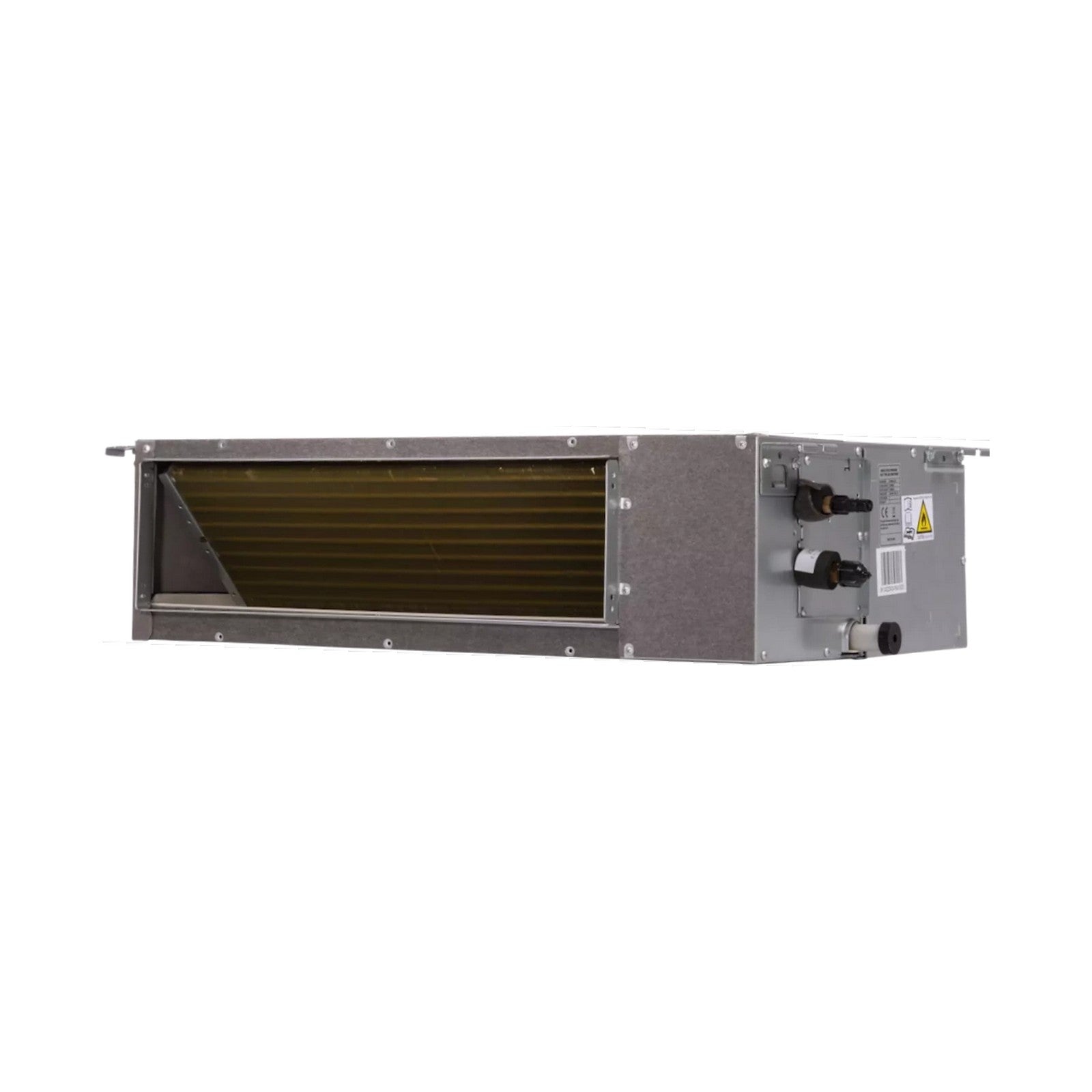

Indoor unit

Product code: CL5000iU D 70 E

Width: 1110 mm

Height: 249mm

Depth: 774 mm

Max. operating temperature, cooling: 32°C

Min. operating temperature, cooling: 16°C

Max. operating temperature, heating: 30°C

Min. operating temperature, heating: 0°C

Useful cooling power: 7 kW

Thermal power: 7.6 kW

Product code: 7733701890
